Custom Widgets

warning

Custom widgets are a new feature. Share feedback, ask questions, and discuss ideas in our GitHub Discussions.

Custom widgets allow you to fetch data from any HTTP API and display it on your Homarr dashboard. You define the API endpoint, authentication, and how the response should be rendered - no code compilation or server restart required.

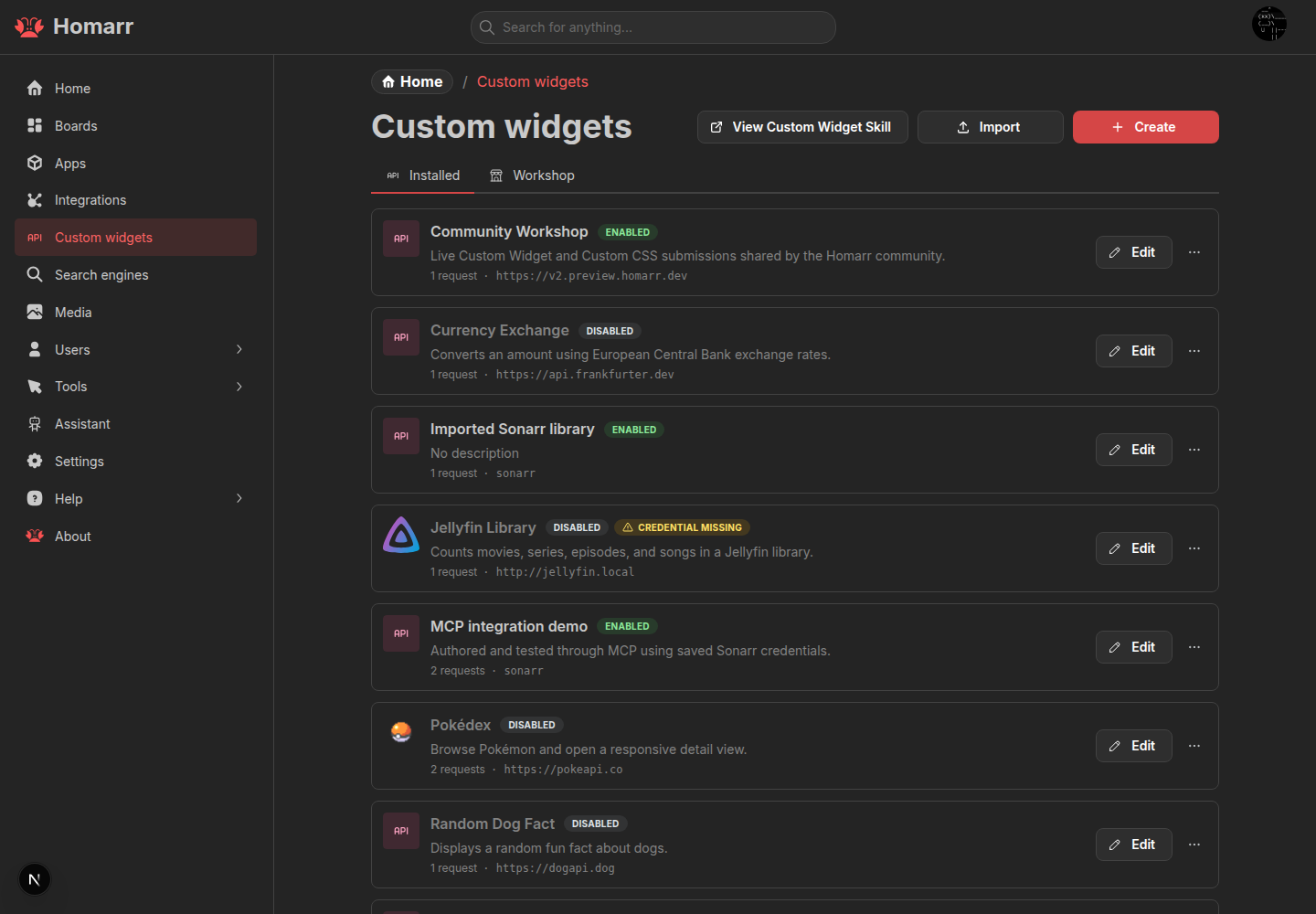

To create a custom widget, navigate to the Custom Widgets section in the management sidebar and click the Add button. Fill in the configuration:

Name - Display name shown in the widget picker and on the dashboard
Description - Optional description shown in tooltips and management UI
Icon URL - Optional URL to an icon image for the widget
URL - The API endpoint to fetch data from (must include protocol, e.g. https://api.example.com/stats)
Authentication - How the API request is authenticated:
- none - Public APIs with no authentication
- bearer - Bearer token authentication
- basic - HTTP Basic auth (username + password)
- apiKeyHeader - API key sent as a custom HTTP header
- apiKeyQuery - API key sent as a query parameter
Header Name - Custom header or query parameter name for API key auth (e.g. X-API-Key)
HTTP Method - GET, POST, PUT, PATCH, or DELETE
Request Body - JSON string body for POST/PUT/PATCH requests
Display Type - How the API response is rendered (see below)

Display Types

Display Type	Description	Best For
Single Value	Extracts a single value with a label and unit	Metrics: temperature, uptime, user count
Key Value	Multiple labeled key-value pairs with optional units	System stats: CPU, memory, disk
Table	API array data rendered as a sortable table	Lists of items with columns
Stat Grid	Labeled values in colored stat cards	Counts: movies, series, albums
Progress Bars	Values as progress bars with percentages	Usage: disk, quota, capacity
Status Indicator	Green/red status dots for health checks	Service monitoring
Count Grid	Simple counts in a grid (no colors)	Library counts
Raw	Pretty-prints the raw JSON response	Debugging
Action Button	Clickable button executing the API request	Triggers: restart, clear cache
Custom JSX	Custom JSX template with Mantine v9 components	Full layout control

AI-Powered JSX Generation

When editing or creating a custom widget with the Custom JSX display type, you'll find a Copy Prompt button. Clicking it copies a pre-formatted prompt describing your widget's name, API endpoint, and available Mantine components. Paste this into your preferred AI assistant (ChatGPT, Claude, Copilot, etc.) to generate a JSX template tailored to your data.

Example: Pokédex widget using Custom JSX

{
  "$schema": "homarr-custom-widget-v2",
  "name": "Pokédex",
  "description": "Browseable Pokémon list",
  "iconUrl": "https://raw.githubusercontent.com/PokeAPI/sprites/master/sprites/items/poke-ball.png",
  "url": "https://pokeapi.co/api/v2/pokemon?limit=75",
  "authType": "none",
  "method": "GET",
  "displayType": "customJsx",
  "displayConfig": {
    "type": "customJsx",
    "template": "<Stack gap=\"md\" p=\"xs\">\n  <Card withBorder radius=\"xl\" p=\"md\" shadow=\"md\">\n    <Group justify=\"space-between\">\n      <Title order={3}>Pokédex</Title>\n    </Group>\n  </Card>\n  <PaginatedList pageSize={12}>\n    <Grid gutter=\"sm\">\n      {data.results.map((pokemon, i) =>\n        <Grid.Col span={1.5}>\n          <Anchor href={pokemon.url} target=\"_blank\" underline=\"never\">\n            <Card withBorder radius=\"xl\" p=\"xs\" shadow=\"md\">\n              <Stack gap=\"sm\" align=\"center\">\n                <Group justify=\"space-between\" style={{ width: \"100%\" }}>\n                  <Badge size=\"sm\" color=\"red\">#{i + 1}</Badge>\n                  <Text fw={800} tt=\"capitalize\">{pokemon.name}</Text>\n                </Group>\n                <Avatar\n                  src={\"https://raw.githubusercontent.com/PokeAPI/sprites/master/sprites/pokemon/\" + (i + 1) + \".png\"}\n                  size={92}\n                  radius=\"xl\"\n                />\n              </Stack>\n            </Card>\n          </Anchor>\n        </Grid.Col>\n      )}\n    </Grid>\n  </PaginatedList>\n</Stack>"
  }
}

Importing and Exporting

Custom widgets can be exported and imported as JSON files. To export, select the widget in the list and click the export button. To import, click the import button and paste the JSON. Secrets (API keys, passwords) are never included in exports and must be configured after import.

The import format uses "$schema": "homarr-custom-widget-v2" to identify the widget version.

Available Mantine Components for Custom JSX

When using the customJsx display type, your template has access to a whitelist of Mantine v9 components. Unrecognized components, event handlers, and dangerous tags are stripped for security.

Layout

Component	Doc
`Stack`	docs
`Group`	docs
`Flex`	docs
`Grid` / `Grid.Col`	docs
`SimpleGrid`	docs
`Center`	docs
`Container`	docs
`Space`	docs
`AspectRatio`	docs

Typography & Content

Component	Doc
`Text`	docs
`Title`	docs
`Code`	docs
`Highlight`	docs
`Mark`	docs
`Kbd`	docs
`Blockquote`	docs
`Anchor`	docs
`NumberFormatter`	docs

Data Display

Component	Doc
`Badge`	docs
`Card` / `Card.Section`	docs
`Paper`	docs
`Alert`	docs
`ThemeIcon`	docs
`ColorSwatch`	docs
`Avatar` / `Avatar.Group`	docs
`Image`	docs
`BackgroundImage`	docs
`Indicator`	docs
`Pill`	docs
`Spoiler`	docs

Tables

Component	Doc
`Table` / `Table.Thead` / `Table.Tbody`	docs
`Table.Tr` / `Table.Th` / `Table.Td`	docs

Lists

Component	Doc
`List` / `List.Item`	docs
`Timeline` / `Timeline.Item`	docs

Feedback & Loading

Component	Doc
`Progress` / `Progress.Section`	docs
`RingProgress`	docs
`Skeleton`	docs
`Loader`	docs

Component	Doc
`TabsContainer` / `TabPanel`	Custom interactive component
`Accordion` / `Accordion.Item` / `Accordion.Control` / `Accordion.Panel`	docs
`ScrollArea`	docs
`Tooltip`	docs

Charts

Component	Doc
`AreaChart`	docs
`BarChart`	docs
`LineChart`	docs
`DonutChart`	docs
`PieChart`	docs
`RadarChart`	docs
`RadialBarChart`	docs
`Sparkline`	docs

Interactive Components

Component	Description
`PaginatedList`	Client-side pagination wrapper
`Collapsible`	Expandable/collapsible section
`StatBar`	Horizontal stat bar
`TypeBadge`	Type-styled badge
`Divider`	docs

Template Bindings

Your template receives:

data - The sanitized API response object. Access fields via data.fieldName or data.results[0].name.
String(v) - Type-safe string conversion
Number(v) - Type-safe number conversion
Boolean(v) - Type-safe boolean conversion
Math - Safe subset: round, floor, ceil, abs, min, max, pow, sqrt, PI
JSON.stringify(v) - JSON serialization
Array.isArray(v) - Array type check
Object.keys(v), Object.values(v), Object.entries(v) - Object utilities

Security Constraints

Event handlers (onClick, onChange, etc.) are stripped
Dangerous HTML attributes (dangerouslySetInnerHTML) are stripped
script, iframe, object, embed, form, style, link, meta, base tags are forbidden
Template strings containing eval, Function, import, require, globalThis, window, document, fetch are rejected
Anchor href attributes are validated to only allow https://, relative (/), and hash (#) URLs
