UPS
UPS
Monitor the status of your UPS devices through a NUT server.
This widget displays the status of the UPS devices reported by a Network UPS Tools (NUT) server. Each device shows its status (online, on battery, charging or low battery), battery charge and estimated runtime, output load, and input and output voltage.
Layouts​
The widget adapts to the size of the tile, so it stays readable from a full dashboard panel down to a single cell. Multiple UPS devices scroll within the widget at any height.
| Layout | Size | Preview |
|---|---|---|

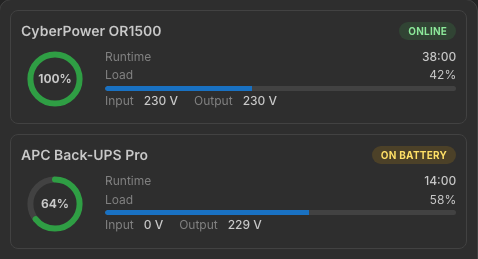

| Full | 3+ columns wide |  |
| Compact | ~2 columns |  |
| Mini | 1 column |  |
Supported Integrations​
PeaNUTA tiny dashboard for Network UPS Tools (NUT) servers.
Adding the widget​
You can find how to add the widget on the Widgets documentation page.
Configuration​
| Name | Description | Values | Default value |
|---|---|---|---|
| Show battery | Displays the battery charge ring and estimated runtime for each UPS device. | yes / no | yes |
| Show load | Displays the current output load percentage for each UPS device. | yes / no | yes |
| Show voltage | Displays the input and output voltage for each UPS device. | yes / no | yes |
